MEMS TECHNOLOY
2D MEMS BLADE
2D MEMS BLADE PROBE 规格

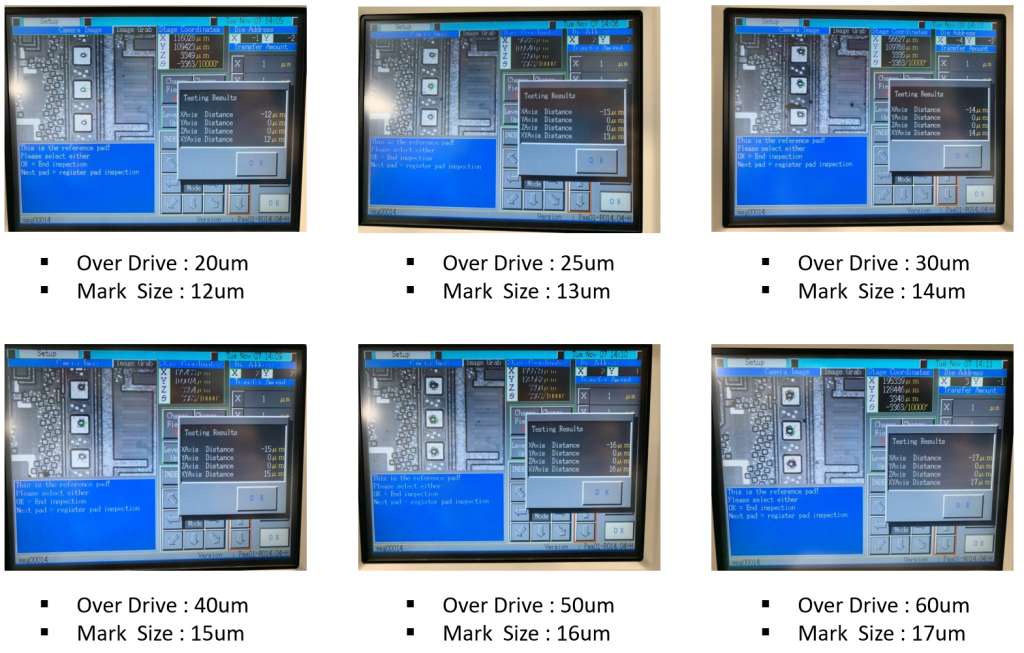

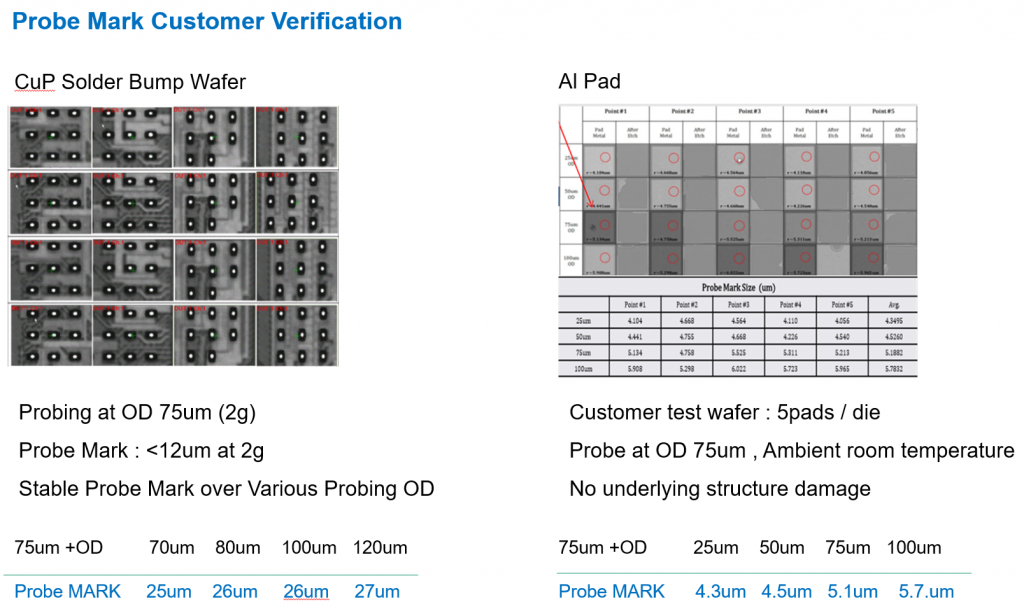

探针痕迹
Probing Mark

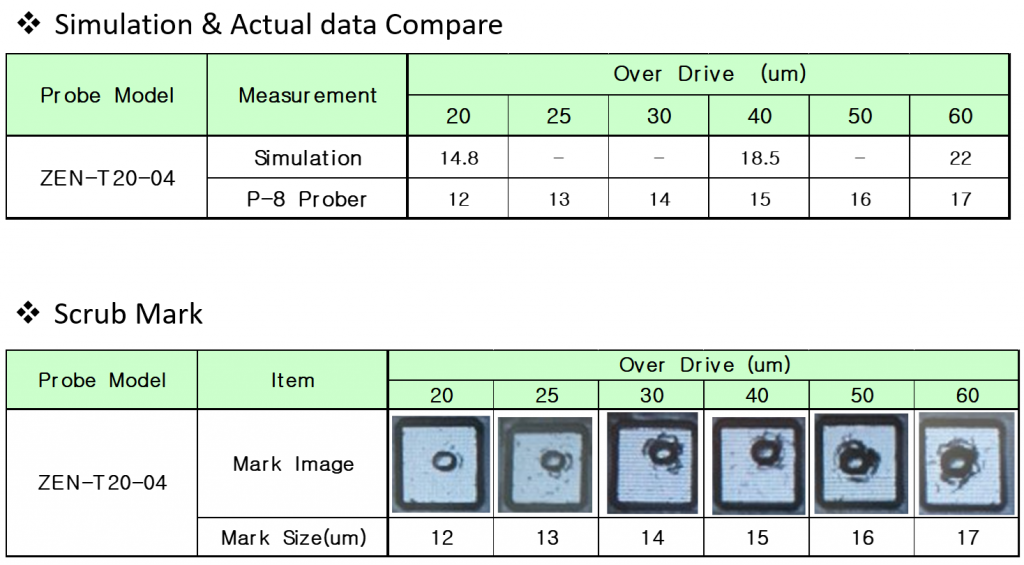

Scrub尺寸比模拟值小2~5微米（模拟时摩擦系数为0）
整体探针痕迹分布均匀

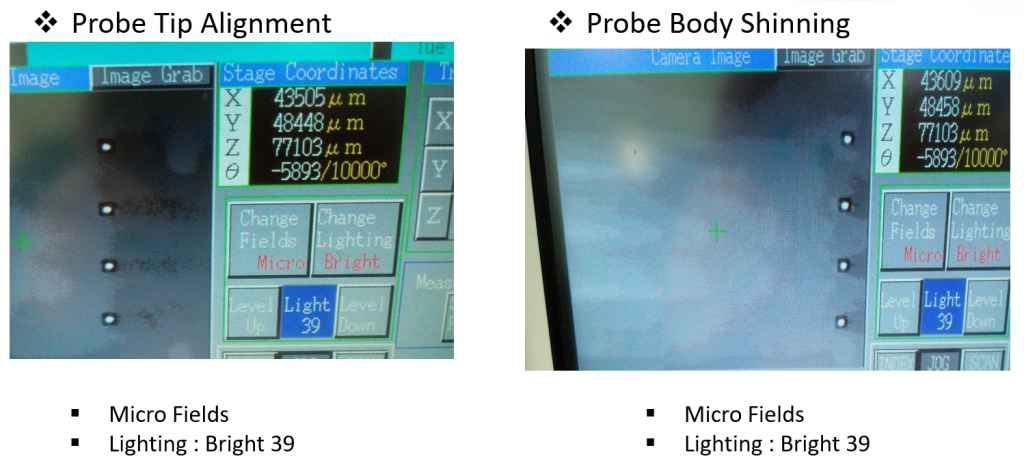

对准
Probe Needle 种类
Tip Length 250um
| Probe Diameter ( um ) | 20X20 | 26X26 | 30X30 |
| Min. Pitch ( um ) | 38 | 46 | 50 |
| Min. Pad Size ( um ) | 23X23 | 32X32 | 36X36 |
| Pin Max Count ( pin ) | 20,000 | 20,000 | 20,000 |
| Material | Ni Alloy | Ni Alloy | Ni Alloy |
Tip Length 500um

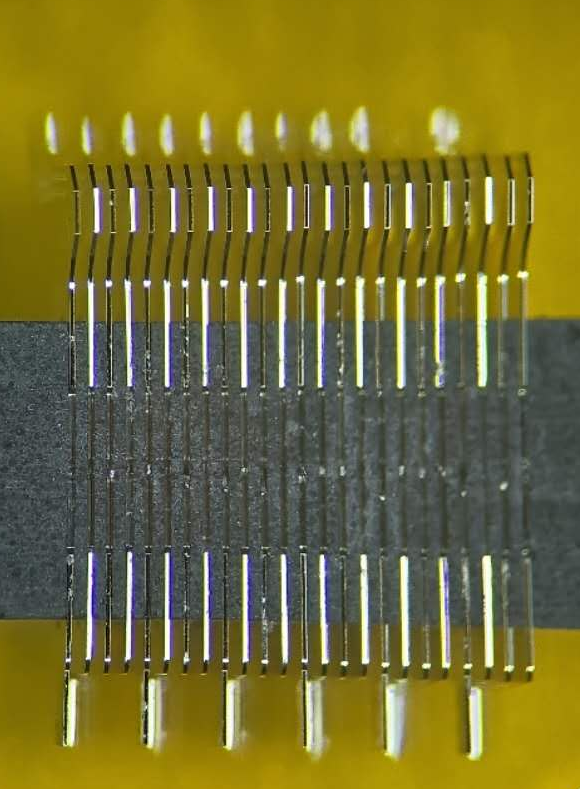

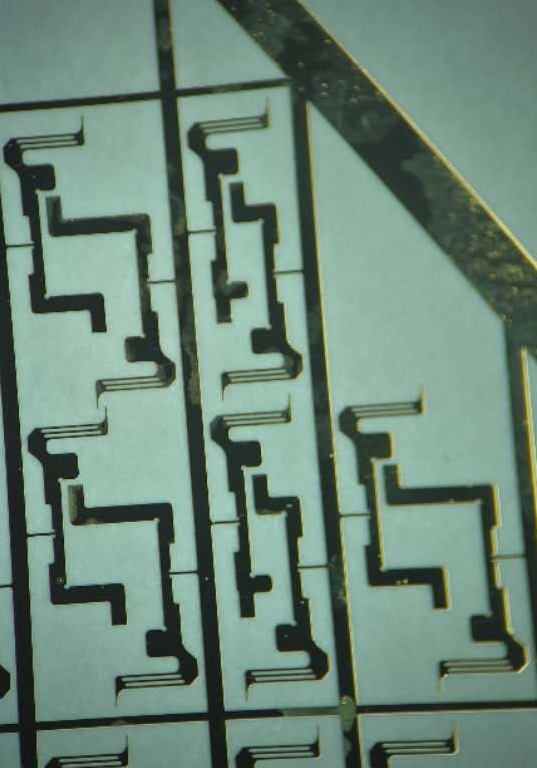

2D MEMS Probe Needle

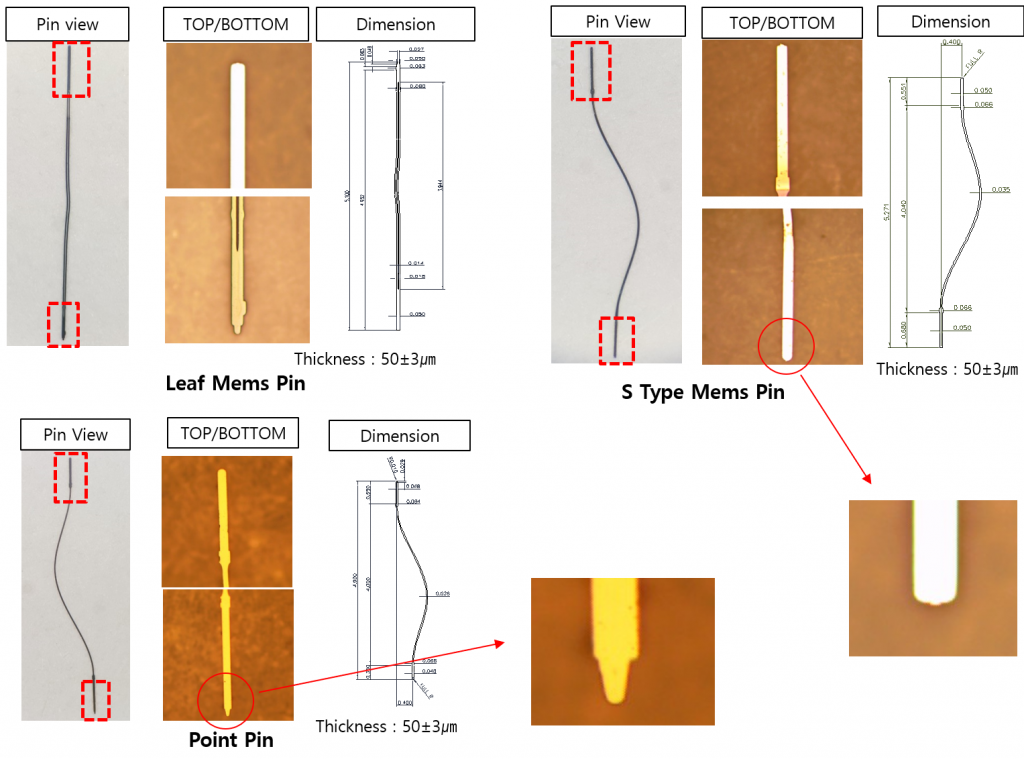

2D MEMS Probe Needle 种类

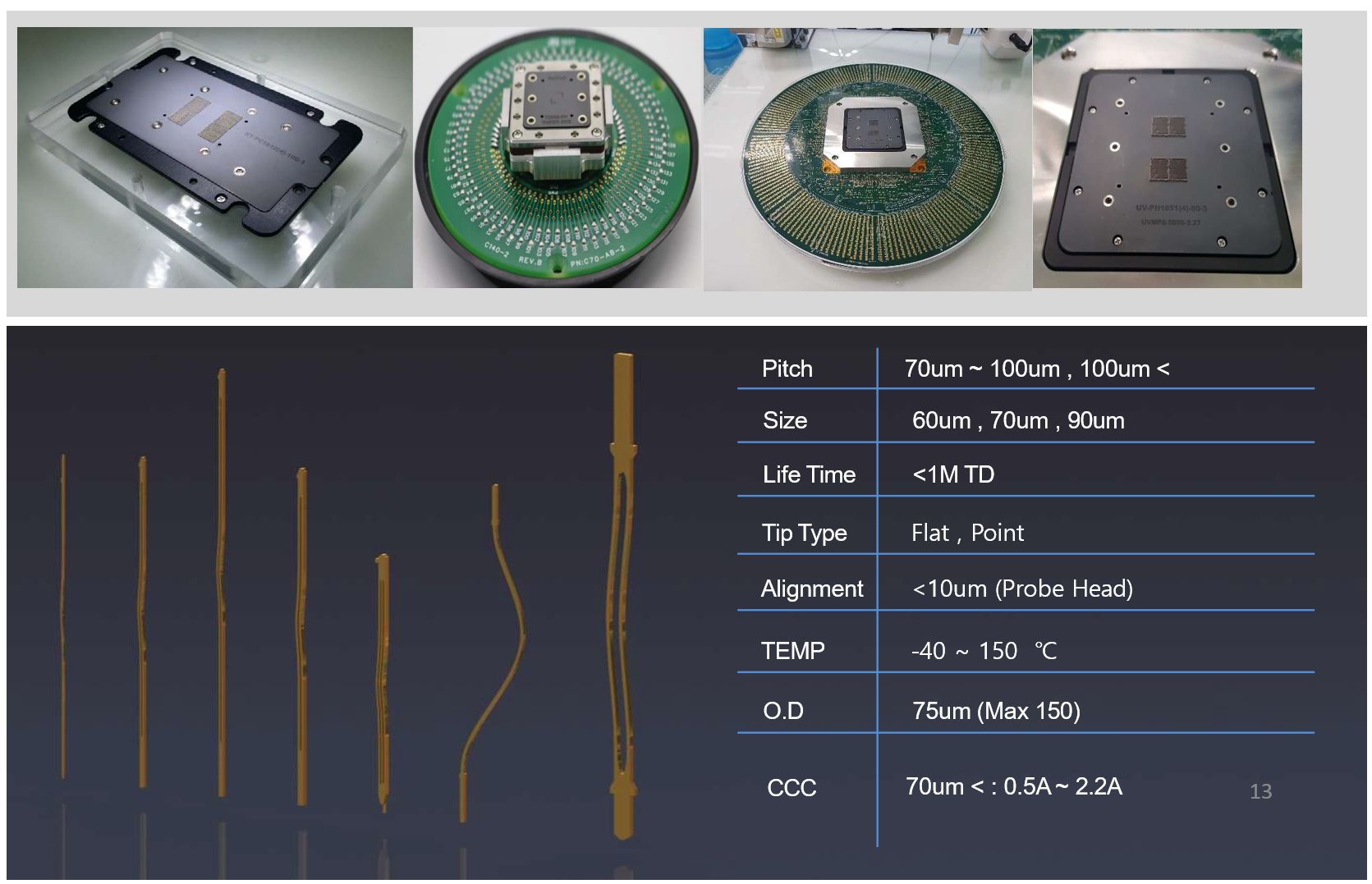

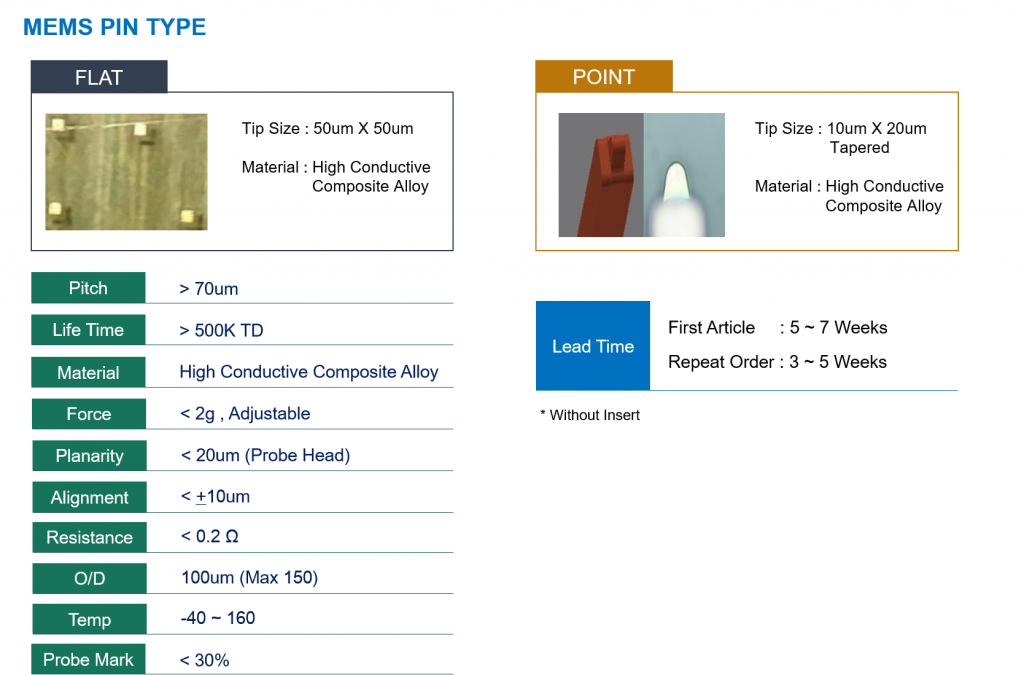

2D MEMS Probe Needle 特性

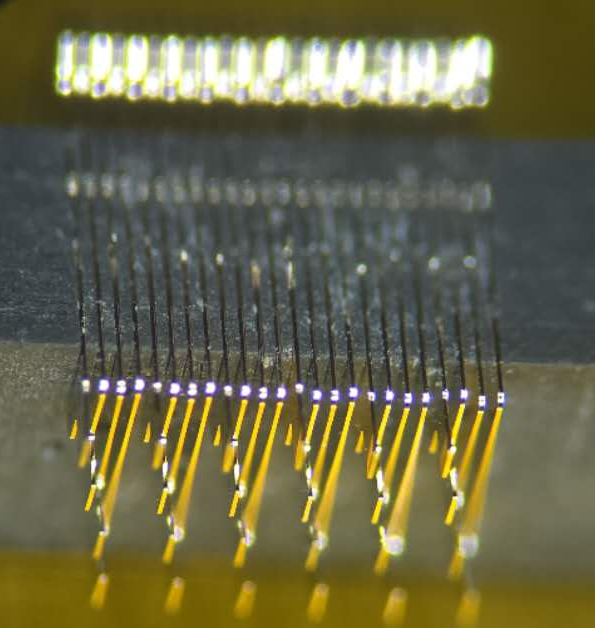

Vertical Cobra Probe

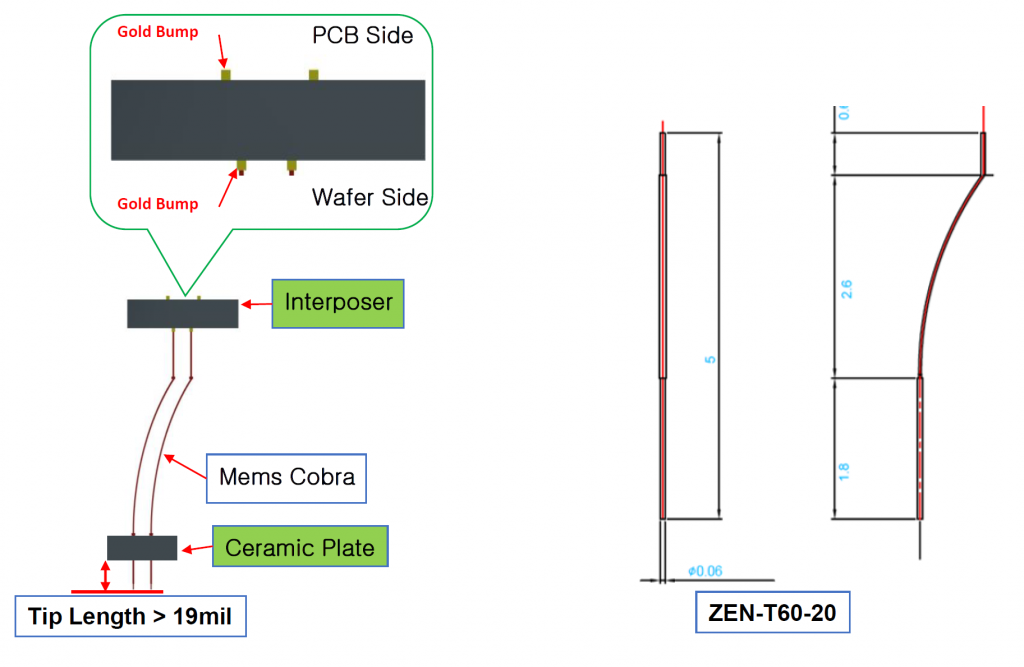

Vertical MEMS Cobra 规格

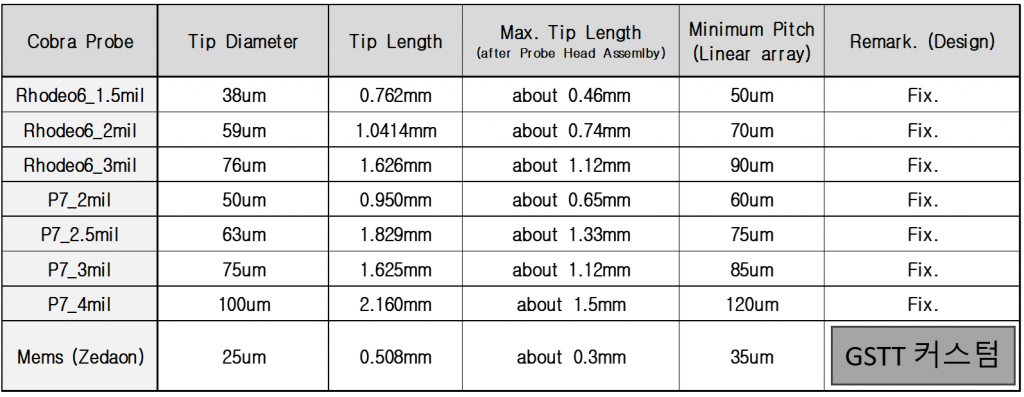

Vertical Cobra Probe 种类
Vertical Cobra Probe 特性
